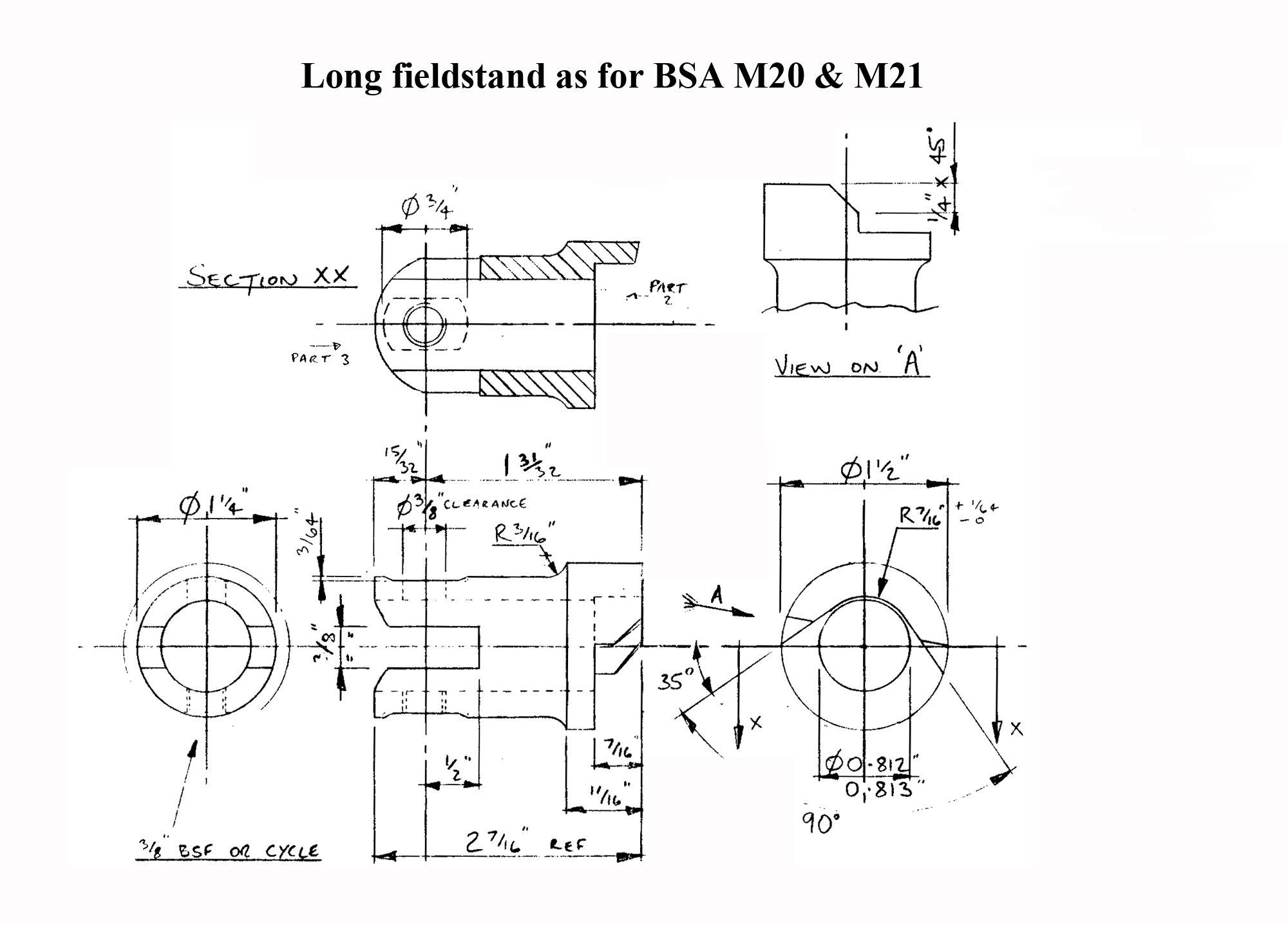

Field stand, technical drawings.

stand1.jpg (269216 bytes) stand2.jpg (360722 bytes) stand3.jpg (416659 bytes) stand4.jpg (318651 bytes) stand5.jpg (269172 bytes)

Fieldstand bracket 1.jpg (280564 bytes) Fieldstand bracket 2.jpg (79545 bytes)

The field-stand clip bracket needs a slight inward bend to line up with the angle of the field-stand see photo and drawing.
